Electric Motor Components >> Shafts

<< Back

More >>


Diameter: 0.125" to 2.000"
Length: 0.400" to 20.00"
OD Tolerance: 0.005mm
Roundness: 0.003mm
Concentricity: 0.005mm
Straightness: 0.003mm
Surface Finish: up to Ra0.10μm Max.
  Stainless Steel: AISI 304, AISI 316, AISI 420, AISI 440C
  Free Machining Stainless Steel: AISI 303, AISI 316F, AISI 416, AISI 420F
  Free Machining Steel: C-1215, C-12L14, C-1141, C-1144
  Carbon structural steel: C-1020, C-1045, C-1050, C-1070
  Alloy structural steel: AISI 5120, AISI 5140, AISI 4140
Secondary Operations:
  Gear hobbing or rolling   Thread cutting or rolling    Spline pressing
  Keyway broaching   Straight knurling   Diamond knurling
  Sing or double flat(s) milling   Vibratory finishing   Heat treatment
Product Type:
  AC/DC Motor Shaft   Micro Motor Shaft   Servo Motor Shaft
  Disk Driver Shaft   Flywheel Shaft   Pump Shaft

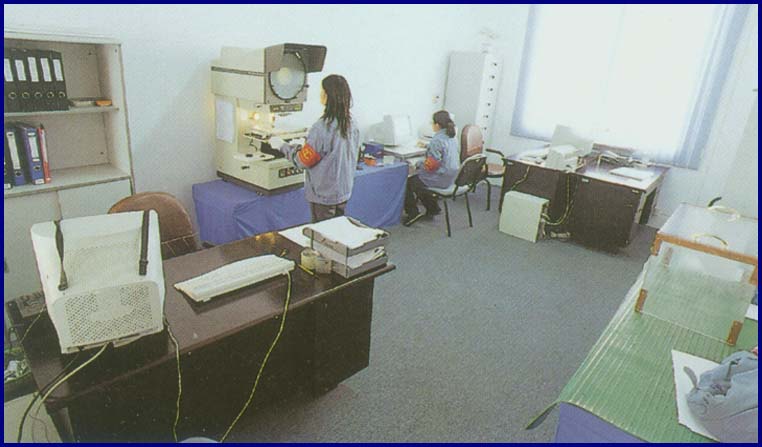

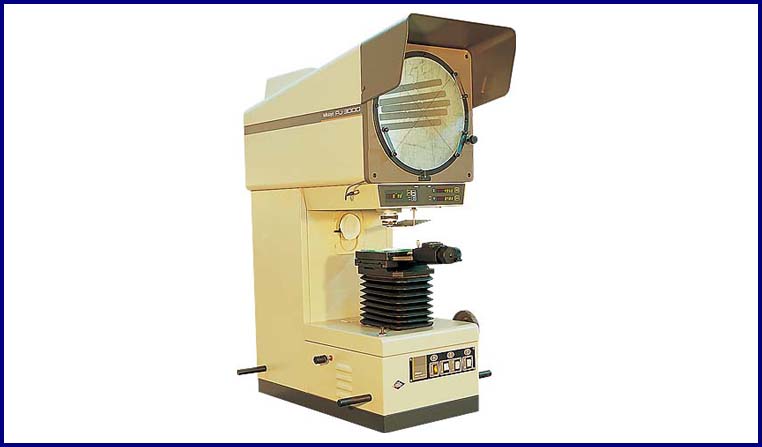

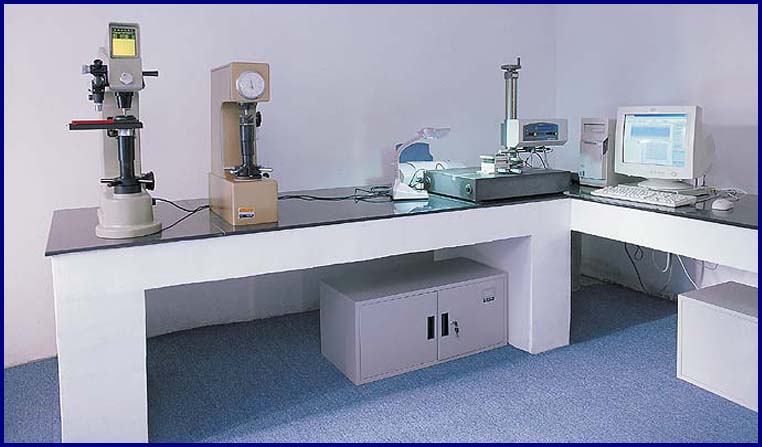

Inspection Center Inspection Center Projector

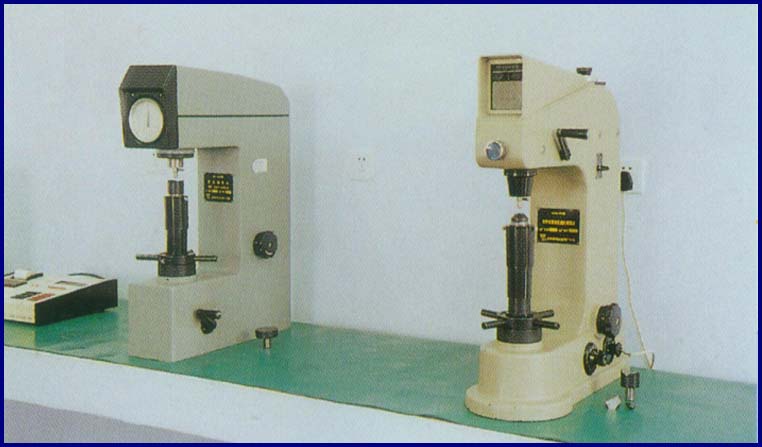

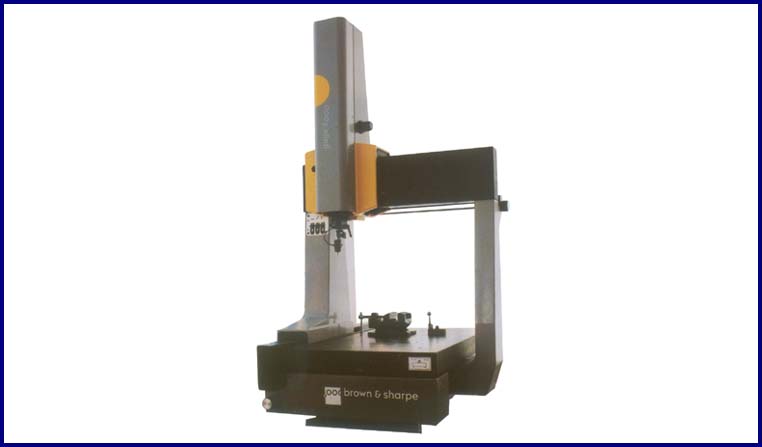

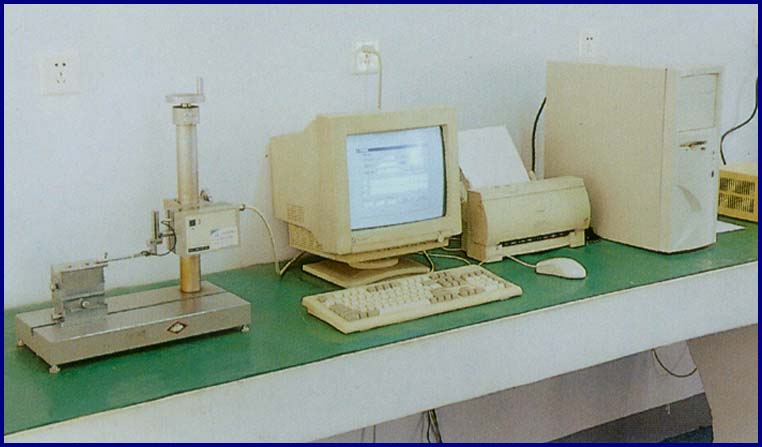

Hardness Tester Roughness Tester Coordinate Measuring Machine

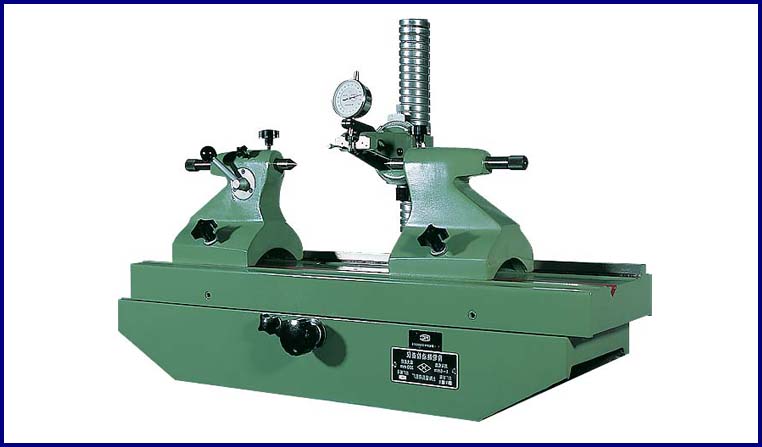

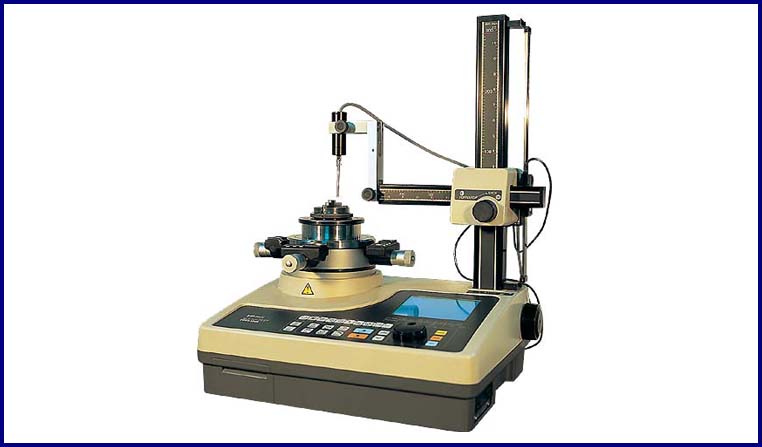

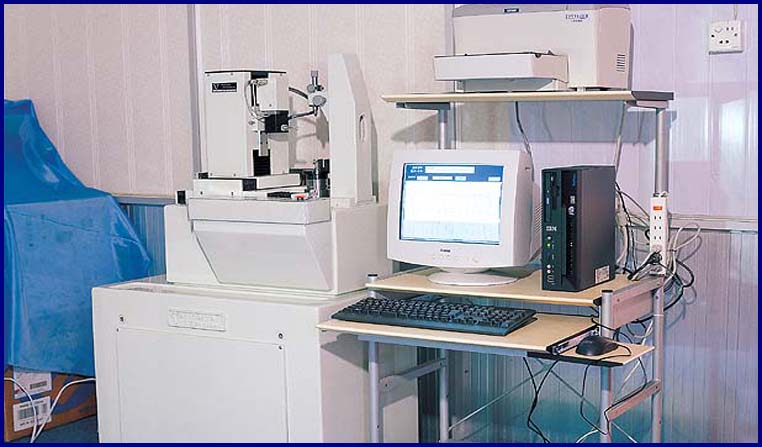

Roundness Tester Runout Tester Gear Runout Tester
